Product Details:
Place of Origin: YUYAO CITY, ZHEJIANG PROVINCE,CHINA
Brand Name: XH
Certification: CE
Model Number: XHC3000-XHC328
Payment & Shipping Terms:
Minimum Order Quantity: 15ctns as our package quantity.
Price: Negotiable
Packaging Details: 46.5*26*36cm carton
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2.5 ton per day

No Calcification Plastic Pipe Socket 20 - 110 MM Size Long Life Span

Description
Product Name: PPR REDUCED SOCKET PPR UNEQUAL COUPLING Certifiacte: ISO9001:2015
Material: Pure PPR Raw Material Color: GREEN, GREY, BLUE, WHITE AND Customized
Size: 20-110MM OEM&ODM: Available
Sample: Available Delivery Time: 20-63mm White Fittings In Stock, Others Depend On Quantity
Application: Cold Or Hot Water Supply Installation: Welding, Fusion, Heat Welder
Lifespan: 50 Years Guarantee
High Light:

plastic pipe socket

,

reducing socket

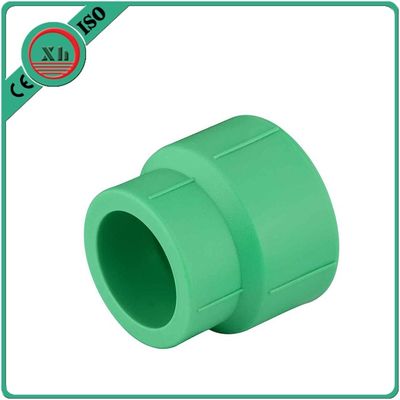

GREEN WHITE PPR REDUCED SOCKET PPR UNEQUAL COUPLING German standard DIN8077/8078

Code Description SIZE mm Weight (G/PC) PC/CTN Vol/ctn (CBM)
XHC3000 Reduced socket S20x16 8 1000 0.043
XHC3001 S25x16 12 900 0.043
XHC3002 S32x16 18 540 0.043
XHC301 S25x20 12.5 840 0.043
XHC302 S32x20 18 500 0.043
XHC303 S32x25 21 450 0.043
XHC304 S40x20 30 448 0.043
XHC305 S40x25 32 448 0.043
XHC306 S40x32 33.5 280 0.043
XHC307 S50x20 59 231 0.043
XHC308 S50x25 61 231 0.043
XHC309 S50x32 62 231 0.043
XHC310 S50x40 54 150 0.043
XHC311 S63х20 102 144 0.043
XHC312 S63×25 100 144 0.043
XHC313 S63×32 102 144 0.043
XHC314 S63×40 97 144 0.043
XHC315 S63×50 105 90 0.043
XHC316 S75×32 129 80 0.043
XHC317 S75×40 120 80 0.043
XHC318 S75×50 128 80 0.043
XHC319 S75×63 136 50 0.043
XHC320 S90×32 213 60 0.043
XHC321 S90×40 215 42 0.043
XHC322 S90×50 198 42 0.043
XHC323 S90×63 207 42 0.043
XHC324 S90×75 220 38 0.043
XHC325 S110×50 288 30 0.043
XHC326 S110×63 300 24 0.043
XHC327 S110×75 330 24 0.043
XHC328 S110×90 380 20 0.043

Features&Advantages:

PPR Pipes and PPR Fittings have lots of advantages for all types of plumbing applications amongst all available options for plumbing piping like PVC Pipes, UPVC Pipes, CPVC Pipes etc. PPR assure 50 years of long life and resistance up to 25 Bar pressure and higher temperature. Let us understand the advantages in detail as under:

  1. Durable

  2. No calcification

  3. Low lying time & cost

  4. Impeccable sturdiness

  5. Leak proof & Frost proof

  6. Eco-friendly / Recyclable

  7. Low thermal conductivity

  8. Application specific structure

  9. No reaction with salts & acids

  10. Superior dimensional accuracy

  11. Non-delayed & non-deforming

  12. Convenient & reliable installation

  13. Excellent noise damping property

  14. Line sagging is properly controlled

  15. Food grade, non toxic and hygienic

  16. Heat preservation and energy saving

  17. Extremely long service life of 50 years

  18. High impact strength and good heat stability

  19. No noise, less friction and smooth inner surface

  20. Strong resistance to acids, corrosion and chlorides

  21. Resistance to low & High Temperature (-4°C to 95°C)

  22. Thermal expansion is well controlled by seventy percent

  23. Unique and unrivaled jointing technique with lifetime security

  24. Good welding property that ensures energy savings and leak proof joints

  25. Poor electrical conductor so that pipes do not get damaged by stray current

  26. No insulation when used in hot water and cold water / chemical applications.

  27. High resistance to chemical, acid & other material like lime & cement

  28. Excellent ESCR (Environment Stress Cracking Ratio)





Application:

  1. Heating, air conditioning and cold water applications

  2. Pipe networks for rainwater harvesting and utilization systems

  3. Compressed air lines and plants for cold and hot air

  4. ETP (Effluent Treatment Plants)

  5. Portable water pipe network (Hospitals, Offices, Schools etc)

  6. Food and Pharmaceutical Applications

  7. Vacuum Pipelines

  8. Buildings, Hotels, Solar Plants, Residential Buildings etc

  9. Pipe networks for swimming pools and ship buildings

  10. Transportation of aggressive / industrial fluids, corrosive fluids, liquid foods & chemicals

  11. R.O. Water Pipeline

  12. Under Flow Heating and Solar Heaters

  13. Pipe networks for Agriculture & Horticulture

  14. Cold & Hot installations in Residences, Complexes, Apartments, Offices, Hospitals, Hotels, Schools etc.



FAQ:



Q: What's your raw material?

A: We only use 100% PPR Virgin raw material, 58-3A grade brass for PPR fittings.



Q: What is your MOQ?

A: Please see below list, different size has different MOQ and the MOQ can be adjusted according to actual order QTY.

MOQ Pipe/M Plastic Fittings/PC Brass Fittings/PC
20-32mm 8000 6000 3000
40-63mm 2000 2000 1000
75-110mm 500 500 300





Q: What about the delivery time ?

A: It is decided by your order Qty. In general, 15 days for one 20FT, 20 days for one 40HF.

And we have white stock for size 20-63mm ppr fittings, if stock can meet your requirement, the goods can be shipped right now.



Q: Where is your nearest shipping port ?

A: Ningbo Port.



Q: What is your payment terms?

A: 30% deposit, balance against the copy of B/L or L/C at sight.



Q: Can we have sample ?

A: Yes, of course. Free sample with airfreight collect.



Q: Can we have our logo on proudcts and customized package?

A: Sure, but order QTY should over our MOQ.



Q: I want to buy RED pipe and fittings? Can you make?

A: Yes, We can make any color if you provide Pantone number or color sample to us. And no matter what color you need, the price is SAME.
