16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants

I'm Online Chat Now

16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants

16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants
16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants

Large Image :  16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants

Product Details:
Place of Origin: China (Mainland)
Brand Name: Xinghua
Certification: ISO9001, CE
Model Number: XHP
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Meter/Meters
Price: Negotiable
Packaging Details: packing ppr pipe and fitting in polyethylene protective sleeves, then put in cartons
Supply Ability: 1000000 Piece/Pieces per Week

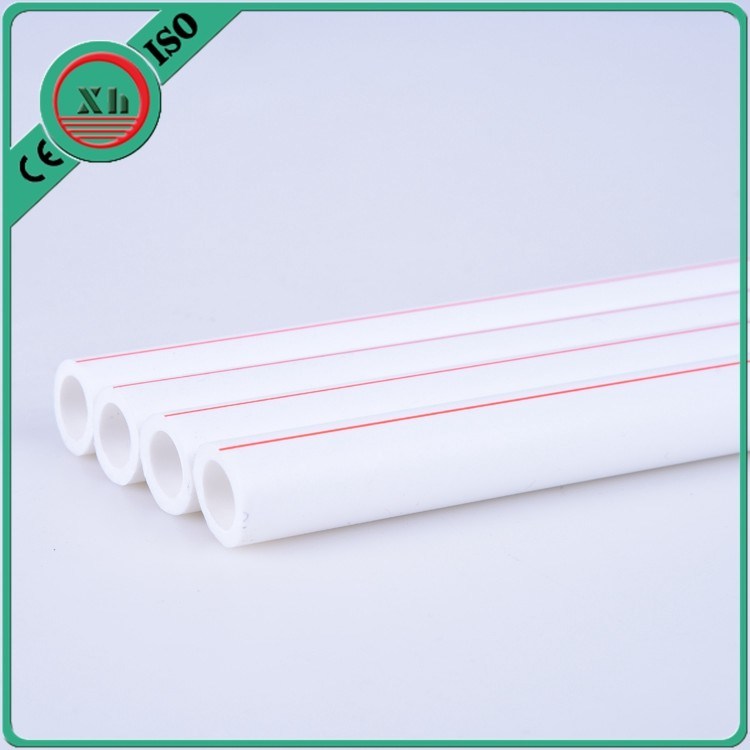

16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants

Description
Material: PPR Specification: PN10-PN25
Length: 16-110mm Thickness: 2-18.3MM
Standard: GERMAN DIN8077/8078 Color: White/Green/Grey
OEM: Aviliable ODM: Avilialbe
High Light:

Heat Resistant PPR Aluminum Pipe

,

Recyclable PPR Aluminum Pipe

,

16MM Aluminum PPR Pipe

ISO 15874 CERTIFICATION 2 - 18.3MM PN10 Plastic PPR Pipe

FEATURES
1.Hygienic and non-toxic:The prpdict is a new type building material and can be used in the pure drinking water pipeline system.

2.High Temperature Resistance:Undet tne stated long-term contiuous work pressure,the water temperature of pipeline transportation can reach 95℃.

3.Anti-corrosion and no furring:It can free the pipeline from furring congestion,and the basin and bathtub from yellow sports and rusts.

4.Thermal Insulation and Energy Conservation:The thermal conductivity coelfanicient is only 1/200 of tne metal pipe and has an excellent elfanect of thermal insulation and energy conservation when used in hot water pipeline.

5.Light with high intensity:The proportion is only ine eighth of the metal. The pressure resistance test intensity reaches 5MPA9(50kg/cm)or above.It has good tenacity and are resistant to wallop.



Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate: ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°

Series SDR9/S4/PN16
Nominal Outer
Diameter
Diameter Wall Thickness Inner Diameter Overall Wall
Thickness
Overall Outer
Diameter
20mm 20.0 2.3 15.4 3.4 21.9
25mm 25.0 2.8 19.4 4.0 27.1
32mm 32.0 3.6 24.8 4.8 34.1
40mm 40.0 4.5 31.0 5.8 42.3
50mm 50.0 5.6 38.8 6.9 52.3
63mm 63.0 7.1 48.8 8.4 65.3
75mm 75.0 8.4 58.3 9.6 77.8
90mm 90.0 10.1 70.0 11.5 93.3
110mm 110.0 13.7 85.8 13.7 114.0






Series SDR7.4/S3.2/PN20
Nominal Outer
Diameter
Diameter Wall Thickness Inner Diameter Overall Wall
Thickness
Overall Outer
Diameter
20mm 20.0 2.8 14.4 3.9 21.9
25mm 25.0 3.5 18.0 4.7 27.1
32mm 32.0 4.5 23.0 5.7 34.1
40mm 40.0 5.6 28.8 6.8 42.3
50mm 50.0 6.9 36.2 8.2 52.3
63mm 63.0 8.6 45.6 10.0 65.3
75mm 75.0 10.3 54.4 11.5 77.8
90mm 90.0 12.3 65.4 13.7 93.3
110mm 110.0 15.1 79.9 16.6 114.0



Series SDR6/S2.5/PN25
Nominal Outer
Diameter
Diameter Wall Thickness Inner Diameter Overall Wall
Thickness
Overall Outer
Diameter
20mm 20.0 3.4 13.2 4.5 21.9
25mm 25.0 4.2 16.6 5.4 27.1
32mm 32.0 5.4 21.2 6.7 34.1
40mm 40.0 6.7 26.6 8.0 42.3
50mm 50.0 8.3 33.2 9.6 52.3
63mm 63.0 10.5 42.0 11.8 65.3
75mm 75.0 12.5 49.8 13.8 77.8
90mm 90.0 15.0 59.8 16.4 93.3
110mm 110.0 18.3 73.2 19.8 114.0





Properties:

1) Healthy, bacteriological neutral, conforming to drinking water standards

2) Resistant to high temperatures, good impact strength



3) Convenient and reliable installation, low construction expenses

4) Excellent heat-insulation property from minimum thermal conductivity

5) Lightweight, convenient to transport and handle, good for labor-saving

6) Smooth inner walls reduce pressure loss and increase flow speed

7) Sound insulation (reduced by 40% compared to galvanized steel pipes)

8) Light colors and excellent design ensure suitability for both exposed and hidden installation

9) Recyclable, environment-friendly, accords with GBM standards

10) Extremely long usage life for at least 50 years

Applications:

1) Potable water For cold and warm water installations



2) For rainwater utilization systems

3) For compressed air plants

4) For swimming pool facilities

5) For solar plants

6) For agriculture and horticulture

7) Heating pipes for residential housing

8) For industry.



16MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants 016MM Recyclable Heat Resistant PPR Aluminum Pipe For Solar Plants 1

FAQ:

Q: What's your raw material?
A: We only use 100% PPR Virgin raw material, 58-3A grade brass for PPR fittings.

Q: What is your MOQ?
A: Please see below list, different size has different MOQ and the MOQ can be adjusted according to actual order QTY.

MOQ Pipe/M Plastic Fittings/PC Brass Fittings/PC
20-32mm 8000 6000 3000
40-63mm 2000 2000 1000
75-110mm 500 500 300



Q: What about the delivery time ?
A: It is decided by your order Qty. In general, 15 days for one 20FT, 20 days for one 40HF.
And we have white stock for size 20-63mm ppr fittings, if stock can meet your requirement, the goods can be shipped right now.

Q: Where is your nearest shipping port ?
A: Ningbo Port.

Q: What is your payment terms?
A: 30% deposit, balance against the copy of B/L or L/C at sight.

Q: Can we have sample ?
A: Yes, of course. Free sample with airfreight collect.

Q: Can we have our logo on proudcts and customized package?
A: Sure, but order QTY should over our MOQ.

Q: I want to buy RED pipe and fittings? Can you make?
A: Yes, We can make any color if you provide Pantone number or color sample to us. And no matter what color you need, the price is SAME.

Q: Could you please send me your price list?
A: OK, please show us your contact information now.
